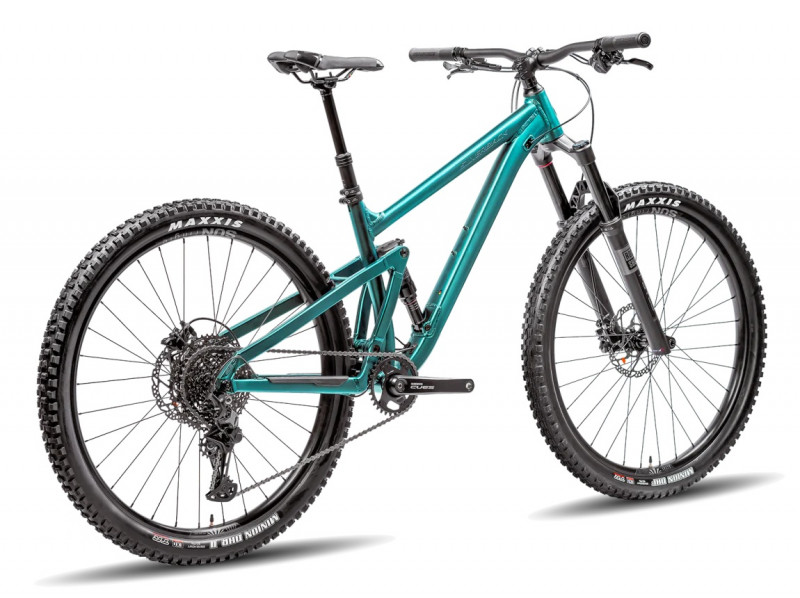

Silverback SE Series Trail 11 Dual Suspension Mountain Bike

This bike comes fully assembled and comes with 12 months free service.

SE:Series Trail is an nimble and fast dual suspension trail platform. The aluminium frameset encompasses a solid rear triangle with a more forgiving front triangle tubeset, giving excellent ride feel, control and all day trail riding comfort. The geometry used helps maintain a balanced posture for both uphill traction and downhill control with a medium reach and balanced head tube angle. Frame designed with short seat tube to allow for long travel dropper post use and great standover clearance. Frame allows for two small water bottles to be carried on the frame, one inside the front triangle and one below the down tube. Single pivot rear suspension design provides excellent tracking, trail feedback and longevity of pivots.

FRAMESET

Frame

Alloy Trail Dual suspension Frame. True single pivot design, 140mm Rear Travel with 185x52.5mm Trunnion Shock. 30x8mm hardware. BSA Bottom Bracket. Boost 148

Headset

Semi-Integrated Threadless Headset, ZS44/28.6, ZS56/39.8

Frame Axle Spacing

148x12mm

Axle Specification

181x12mm P1.75

Hanger Type

HANGER 3

SUSPENSION

Fork

Rockshox Psylo Silver RC, Motion Control, Air sprung, 140mm Travel, 110x15mm Boost, 35mm Stanchions

Fork Travel

140mm

Rear shock

Rockshox Deluxe Select R, Custom Tuned, Trunnion, 185x52.5mm

Rear Suspension Travel

140mm

Shock Mounting

Body: Trunnion, M10x54mm

Shaft: Standard, 8x30mm

Eye-to-Eye x Stroke

185x52.5mm

WHEELS

Wheelset

SUNringlé Custom Wheelset

Hubs

F: Shimano HB-TC500-15-B, Centre Lock, 32H, 15mm Thru-Axle, OLD: 110mm

R: Shimano FH-TC500-HM-B Freehub, Centre Lock, 8-11 Speed, 12mm Thru-Axle, 32H, OLD: 148mm

Rims

F: SUNringlé 329, Sleeved, STR Tubeless

R: SUNringlé 329, Sleeved, STR Tubeless

Tyres

F: Maxxis DHF 29x2.5" EXO, Tubeless Ready

R: Maxxis DHR II 29x2.4" EXO, Tubeless Ready

Max Tyre Size

2.5"

DRIVETRAIN

Crankset

Shimano FC-U4000-1 CUES, 32T, 170mm

Max Chainring Size

32T

Bottom Bracket & Type

BSA73

Shifter(s)

R: Shimano SL-U6000-11R CUES 11-Speed Right Shift Lever, Rapidfire Plus

Rear Derailleur

Shimano RD-U6000 CUES, 11-Speed

Cassette

Shimano CS-LG400-11 CUES 11-Speed, 11-50T

Chain

Shimano CN-LG500 LG, 9/10/11 Speed

BRAKES

Brakes

Shimano MT200 2-piston Hydraulic Disc, Resin Pads

Rotors

Shimano SM-RT54 Deore, 180mm, Centre Lock

COCKPIT

Grips

SURFACE Double Density Lock-On

Handlebar

SURFACE Alloy Handlebar, Dia: Ø31.8mm, 9° Back sweep, 20mm Rise

Stem

SURFACE Alloy, 31.8mm, Extension: 45mm, Rise: 3°

Saddle

SURFACE Ergo

Seat Post

SURFACE Dropper Post, Remote Lever, Ø30.9mm, S:100/M:125/L:150/XL:170mm Travel

Seatpost Clamp

SURFACE Alloy w/Steel Bolt

Pedals

Not Included
