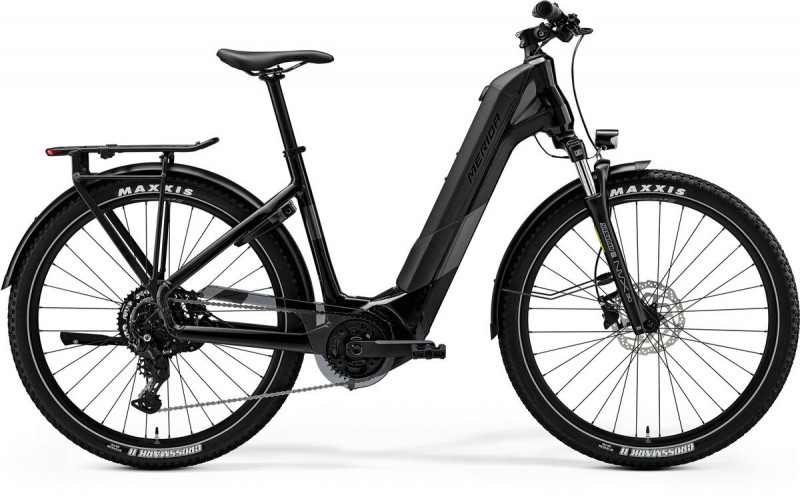

Merida eSpresso CC 400 EQ  Electric  Step-Thru Bike 2026

Introducing the Merida eSpresso CC 400 EQ Electric Step-Through Bike - the ultimate blend of rugged durability for the countryside and city-smart toughness. Powered by the Shimano EP6 drive unit and a 504 Wh battery housed in the innovative ENERGY CRADLE frame, the eSPRESSO CC 400 EQ offers the perfect combination of performance and aesthetics. The external battery design mimics the look of an internal battery, ensuring safe and secure handling while maximizing battery capacity.

Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.

This electric bike is fitted with robust 650b wheels and high-volume tyres, providing extra comfort and traction over bumpy surfaces. The suspension fork and seatpost absorb shocks, making every ride smoother and more enjoyable. Whether you're tackling urban streets or venturing along gravel paths and forest trails, the eSPRESSO CC range delivers exceptional versatility and stability.

Designed as the rugged sibling of the eSPRESSO CITY, this bike boasts wider, grippier tyres that excel on both city streets and off-road trails. Fully equipped with mudguards, lights, a lock, a rack, and a kickstand, it's ready for both commuting and weekend adventures. The strong, low step-through ENERGY CRADLE frame ensures maximum rigidity while maintaining a sleek design.

SEASON 2026

ACCESSORIES Carrier: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light; Fender: Sunnywheel SW-FA-311-65(MSB); Kickstand: Atranvelo ED-100-PC; Frame Lock: Abus 4650 XL

BRAKES F: Shimano MT-200; 2 piston | R: Shimano MT-200; 2 piston

CASSETTE Shimano LG300; 11-46 ATC; 9 GER

CHAIN Shimano LG500

COLOUR METALLIC BLACK(GUNMETAL GREY)

CRANKSET Samox NWP203 ; 38 ATC; MERIDA EXPERT TK; 165mm

DERAILLEUR REAR Shimano CUES U4000

FORK Suntour NVX30 DS; Coil; 80 STR; 27,5x2,4" max WHS

FRAME eSPRESSO CC LITE III; MAT aluminium; 27,5x2,25" max. WHS; 135x9 AST; internal

GRIP MERIDA EXPERT TK

HANDLEBAR MERIDA COMP CC; MAT aluminium; 660 WHB; 15 RHB

HANDLEBAR STEM MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable; 90 mm- XS/S/M/L/XL

HEADSET MERIDA-8254

HUBS F: Shimano QC300; 100x9 WHF; 32 SPH; Centerlock | R: Shimano QC300; 135x9 WHR; 32 SPH; Centerlock

LIGHT(S) F: Herrmans H-Black MR4 E | R: Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier

PEDALS VP VPE-891

RIM MERIDA COMP TK; 20 IWR; MAT aluminium

ROTOR FRONT Shimano RT10; 180 mm

ROTOR REAR Shimano RTEM300; 180 mm

SADDLE MERIDA EXPERT TK II; V-mount

SEAT CLAMP MERIDA EXPERT

SEAT POST MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB

SHIFTERS R: Shimano CUES U4000

SPOKES Black stainless ; black nipples

TYRES F: Maxxis Crossmark II; 27.5x2.25"; wire; reflecting line | R: Maxxis Crossmark II; 27.5x2.25"; wire; reflecting line

MOTOR/DRIVE UNIT Shimano EP6; 85Nm; 25KPH

MOTOR BRAND Shimano

MOTOR MODEL STePS EP6

MOTOR POWER (WATTS) 250

MOTOR TORQUE (NM) 85

BATTERY Shimano EN805-L; 504Wh

BATTERY BRAND Shimano

BATTERY MODEL Shimano EN805-L

BATTERY SIZE (WATT-HOURS) 504

EBIKE DRIVE SYSTEM Mid Drive

DISPLAY Shimano SC-EN500

Plus, we offer 12 months of free servicing to keep your eSPRESSO CC 500 EQ running smoothly and safely, ensuring you're always ready for your next adventure!
