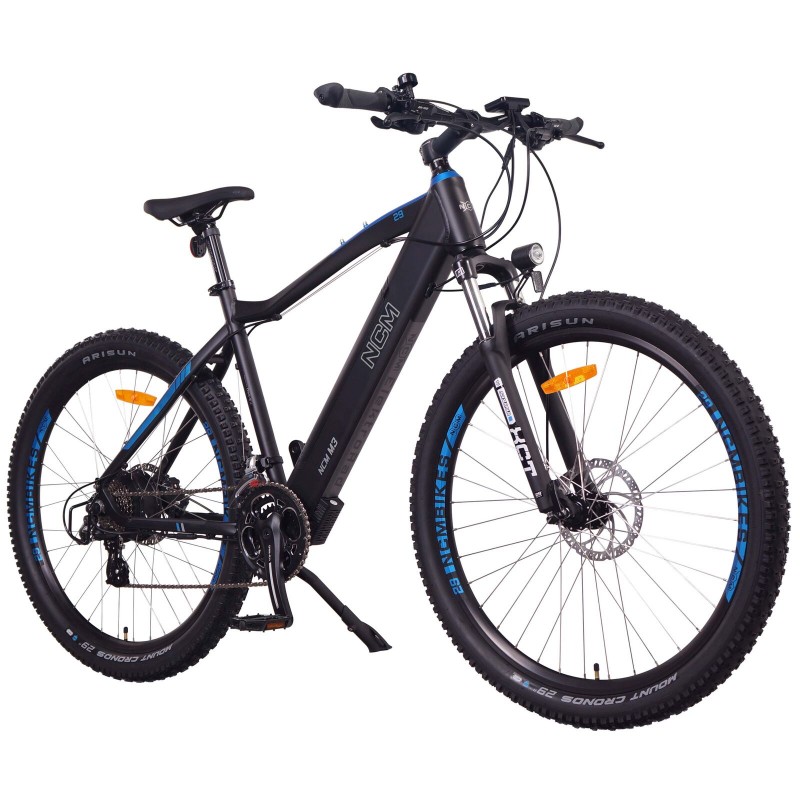

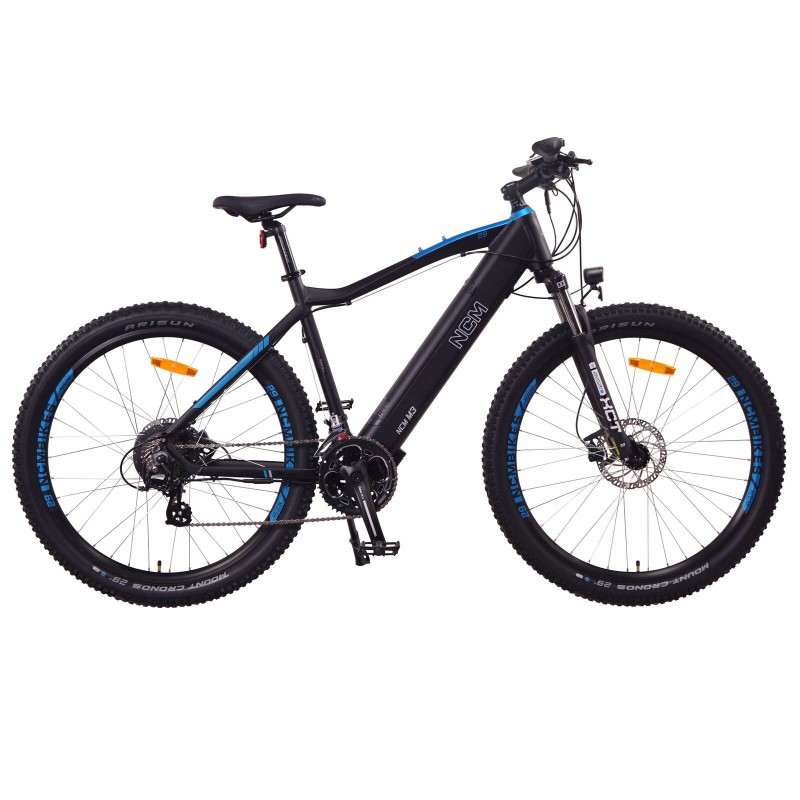

NCM M3  Electric Mountain Bike

An entry-level e-mountain bike that doesnÂ’t compromise on high-quality components, the NCM M3 is built to maintain its cool no matter what mountain trail it faces, balancing range and performance with accessibility and ease of use.

Comes fully assembled and ready to ride. We also do 12 months free servicing on this bike.

Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.

KEY FEATURES

Reinforced integrated battery

Custom front light to enhance visibility

Easily removable battery to charge it anywhere

Up to 110km Battery Range (depending on the conditions)

Up to 500W Peak Motor Power

Das-Kit / Tektro Hydraulic Disc Brakes

Ergonomic bicycle grips

Comfortable sitting posture

All the important controls are easily accessible

BIKE COMPONENTS

Frame: Alu. 6061, 26"*18.1 inches / 27.5"*18.9 inches / 29"*20.5 inches

Suspension Fork: Suntour, XCT

Brake: Tektro / Das-Kit Hydraulic Disc Brakes

Freewheel: 7 Speed, 14-28T

Tire: 26x2.30, 27.5x2.35, 29x2.35

Saddle: VELO, VL-3410

Stem: Promax, Alu.MA-471

Crank: DAS-KIT, CM48,28/38/48T

Shifter Left: Shimano, Altus, F: SL-M315-L, 3 Speed

Shifter Right: Shimano, Altus, R: SL-M315-7R, 7 Speed

Front Derailleur: Shimano, Altus, FD-M313

Rear Derailleur: Shimano, Altus, RD-M310

Chain: KMC, Z51

ELECTRIC COMPONENTS

Battery: Das-Kit, i6-4812, 48V 12AH, 576WH

Motor: Das-Kit, X15, Rear drive motor, 48V 250W, 25KM/H

Controller: Das-Kit, CT-i6, 48V18A

Charger: Das-Kit, 48V2A

Display: Das-Kit, L7

Front Light: DH002, 48V, 40 Lux

 WEIGHT

Net Weight (with battery): 26.0kg

Battery Weight: 3.4kg
