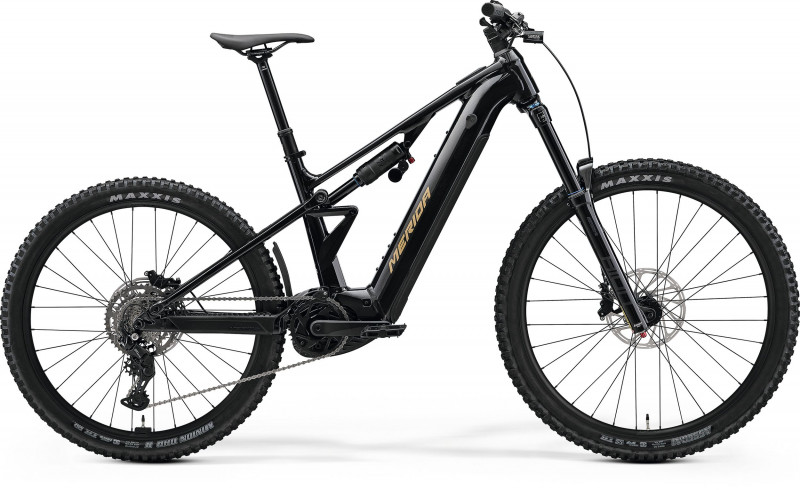

Merida eOne Eighty 400 Dual Suspension Electric Bike 2026 Bosch

Merida eOne Eighty 400 Electric Dual Suspension Mountain Bike

The Merida eONE-EIGHTY 400 is the perfect entry point into the world of big-hitting e-MTBs. Built to handle the rough stuff without breaking the bank, this bike delivers serious performance at a budget-friendly price.

- Suspension for the toughest trails: SuntourÂ’s Aion 38X fork and TRIAIR2 rear shock provide 180 mm of plush, controlled travel.

- Durable aluminium frame: Designed with mixed wheel sizes for agile handling and maximum fun.

- Reliable drivetrain & brakes: ShimanoÂ’s CUES U4000 9-speed drivetrain ensures smooth shifting under pressure, while powerful four-piston brakes give you confident stopping power.

- Bosch Performance Line CX drive unit: Silent yet powerful assistance with up to 100 Nm of torque.

- Long-lasting battery options: Comes with a removable 600 Wh battery, with the option to extend range using a 250 Wh extender.

- Category 5 rated: Ready for bike park laps, downhill tracks, and the burliest terrain, backed by a 5-year frame warranty.

- Smart sizing: MERIDAÂ’s AGILOMETER reach-based system with size-specific dropper posts ensures the perfect fit.

Why riders love it

The eONE-EIGHTY 400 is built for heavy hitters, bike park senders, and mountain brawlers who want maximum descending performance without overspending. With Bosch CX power and a robust suspension platform inspired by MeridaÂ’s award-winning FAST kinematic, this bike is ready to rip big lines all day long.

Exclusive at Engadine Cycles

When you purchase the Merida eONE-EIGHTY 400 from us, youÂ’ll also enjoy 12 months of free servicing, ensuring your bike stays in peak condition while you focus on the ride

This bike comes with the Bosch CX drive unit which has 85nm of torque. The software upgrade is now available which will take its torque up to 100nm and 750w peak power and is fully adjustable in the Bosch Flow app.

Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.

Specifications

frame eONE-EIGHTY LITE

frame size XShort, Short, Mid, Long, XLong

color METALLIC BLACK (RIVER CLAY)

fork SR Suntour Aion 38X

shock SR Suntour TriAir 2

brakes Sram DB4 stealth

rotors Sram CenterLine

headset Acros ICR MERIDA EXTERNAL neck w/ Blocklock

handlebar MERIDA COMP TR II

handlebar stem MERIDA EXPERT eTR II

grip MERIDA COMP TR

derailleur (r) Shimano Cues U4000

shifters Shimano SL -MT500-L / Shimano Cues U4000-9

seat post MERIDA EXPERT TR II

seat clamp MERIDA EXPERT

saddle MERIDA COMP SL

pedal VP VPE-533

chain Shimano LG500

chainwheel FSA Direct Mount Steel Chainring

crank FSA CK-220 wide E-Bike Forged Crankset

freewheel Shimano Cues LG400-9

hubs Novatec SL-ELITE D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S

rim MERIDA EXPERT TR II

tyre front Maxxis Assegai

tyre rear Maxxis Minion DHR II

axles MERIDA EXPERT TR

spokes Black stainless

light front Lezyne Hekto StVZO E350+ Reverse

light rear USB rechargable Chance Good CG-404RG-BLK

fender RF-001 mini fender

drive unit Bosch Performance Line CX

battery Bosch PowerTube 600

battery lock Abus Key

display Bosch Purion 200

max. weight 140 kg
